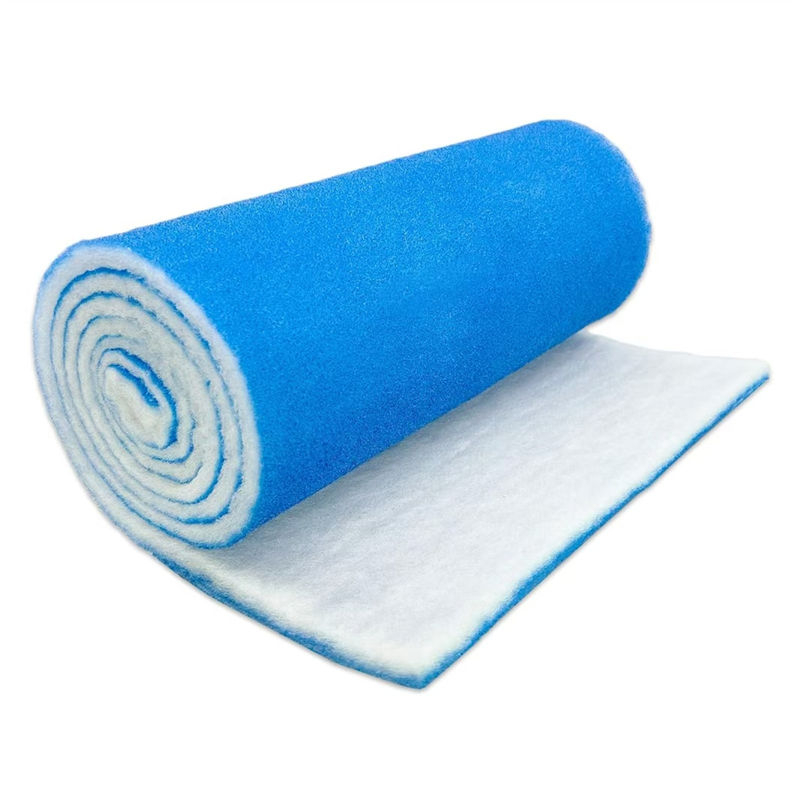

Dual-Color G3-G4 Low-Resistance Pre-Filter Media Roll Industrial

DOER Industries presents our premium blue and white G3 G4 polyester pre filter media roll, engineered to deliver reliable first-stage filtration for demanding commercial and industrial air management systems. As a leading manufacturer with 14 years of industry experience, we design our filtration solutions to reduce operational costs while protecting your valuable equipment. Our dual-color progressive density media extends the lifespan of downstream high-efficiency filters by up to 50%, lowers energy consumption, and eliminates costly installation errors. Fully certified to EN779 G3/G4 and ISO 16890 standards, this media roll is ideal for large-scale facility applications with customizable dimensions to fit your specific system requirements.

Key Features & Technical Advantages

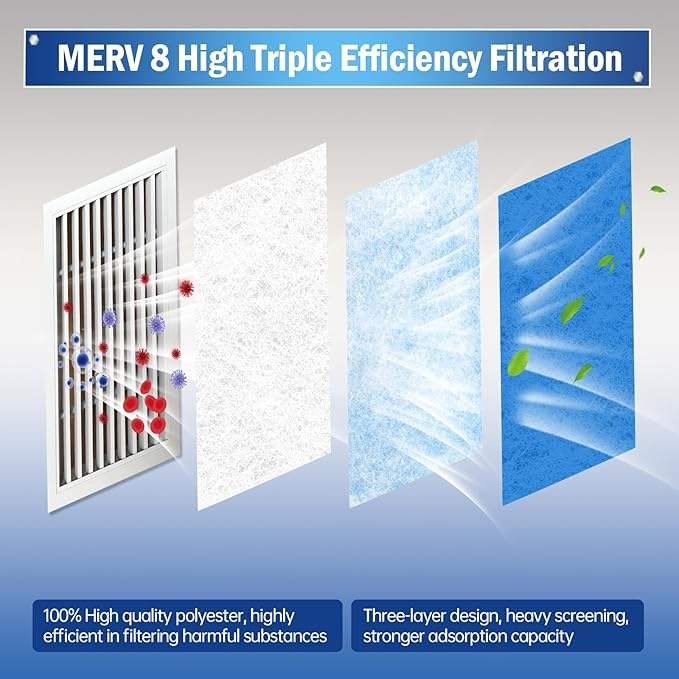

Dual-Color Progressive Density Filtration System

Our innovative dual-color design serves as an intuitive installation guide while providing superior filtration performance. The blue windward side features an open, porous structure that captures large debris such as dust, pollen, and industrial lint. The denser white leeward side traps finer particulates before they can penetrate deeper into your system. This graduated density structure enables deep filtration mechanics, distributing particulate load throughout the entire 1-2 cm thickness of the media to prevent premature surface clogging and maximize dust holding capacity.

Optimized Low Pressure Drop Airflow Dynamics

The specialized microfiber arrangement maintains a remarkably low initial resistance, ensuring your ventilation systems operate at peak efficiency from the moment of installation. This optimized airflow reduces the electrical energy consumption of your fans and motors, delivering measurable energy savings over time. Unlike standard filter media that quickly become clogged and restrict airflow, our design maintains consistent performance throughout its service life, minimizing system strain and reducing maintenance frequency.

Superior Durability & Environmental Resistance

Manufactured using advanced hot-air-through nonwoven technology, our 100% premium polyester fibers are thermally bonded to create a stable, resilient matrix that resists shedding and fiber migration even under high-velocity air currents. The media offers 100% humidity resistance, will not absorb moisture or promote microbial growth, and can withstand continuous operation at temperatures up to 100°C with sudden spikes up to 120°C. Our silicone-free and VOC-free composition makes it perfectly safe for sensitive environments such as automotive paint booths and pharmaceutical cleanrooms.

Technical Specifications

Versatile Industrial Applications

This adaptable pre filter media serves as the critical first line of defense across a wide range of commercial and industrial sectors. It is widely used in commercial HVAC systems for office buildings and shopping centers, industrial manufacturing ventilation, automotive paint booth ceiling filtration, pharmaceutical and semiconductor cleanroom pre-filtration, and even large-scale aquaculture water filtration systems.

Why Choose DOER Industries

As an established manufacturer with a 25,000 m² production facility and 15 fully automatic production lines, we control every aspect of the manufacturing process to ensure consistent quality at competitive prices. We offer comprehensive customization options including variable gram weights (150-600 g/m²), metal mesh backing for high-velocity systems, and custom packaging. Our dedicated engineering team provides technical support to develop tailored solutions for your specific filtration challenges.

FAQ

How does the dual-color design improve installation?

The blue side is the air-entering windward side, while the white side is the air-exiting leeward side. This clear visual guide ensures correct orientation every time, eliminating costly setup errors that could reduce filtration efficiency and increase system strain.

Can this media be washed and reused?

Yes, the robust fiber matrix allows for gentle vacuuming from the windward side to remove dry dust accumulation. For heavier, sticky contaminants, the pads can be rinsed with lukewarm water. Ensure the media is completely air-dried before reinstallation to prevent moisture carryover into your ductwork.

Does this material contain silicone or VOCs?

No, our manufacturing process is strictly silicone-free and uses thermal bonding instead of chemical binders. This ensures the media will not off-gas or introduce contaminants, making it perfectly safe for automotive paint booths and sensitive cleanroom environments.

Request your free sample today or contact our team to get a custom quote tailored to your facility's needs.
