Short-Fiber Non-Woven PP Geotextile Fabric for Geobags

Share to:

Short-Fiber Non-Woven PP Geotextile Fabric for Geobags

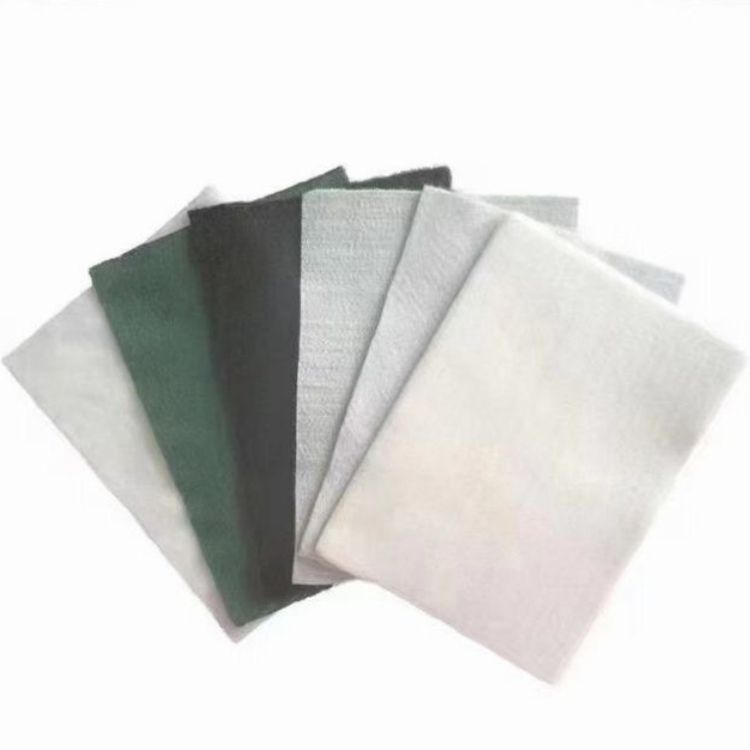

This short-fiber needle-punched PP geotextile is specially matched for geobags, made of polypropylene staple fiber. With weight from 100 to 1200g/㎡ and 1–6m customizable width, it holds ISO9001 & ISO14001 certificates. It owns anti-UV, high-temperature, anti-corrosion and high drainage performance, adapting uneven ground for sediment control, river regulation and road projects. Free samples and over 5-year warranty are provided.

Availability:

Quantity:



Inquire Add to Basket

Product Description

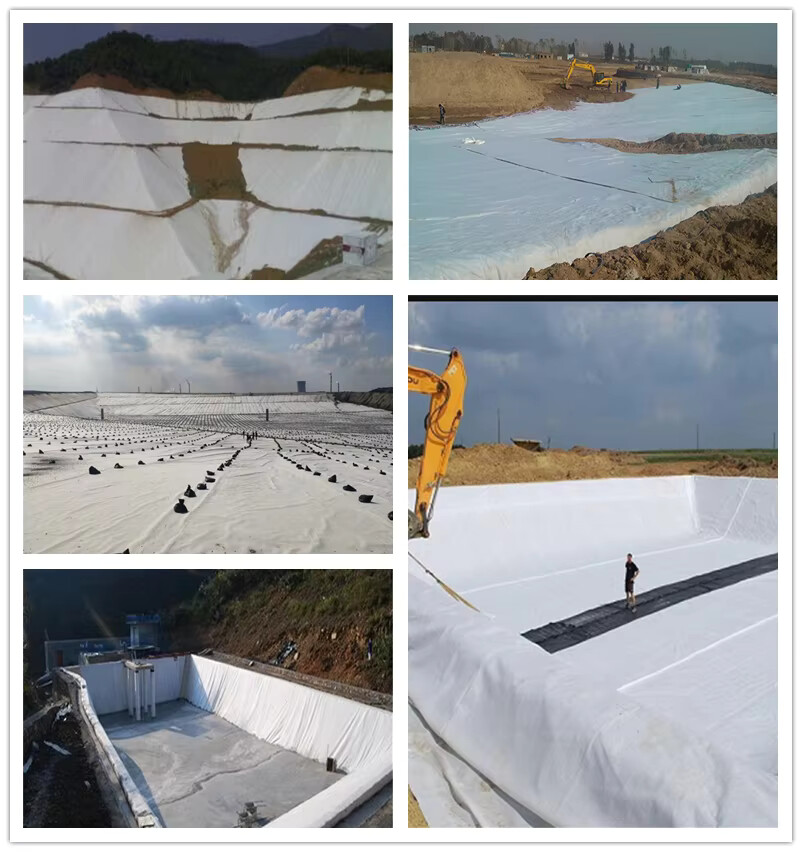

场景应用图

Technical Parameters

Geotextile Type	Non-Woven Geotextiles	Material	PP
Application	Sediment Control	Feature	Nonwoven
Length	50 m, 100 m	Width	1-6m
Project Solution Capability	Cross Categories Consolidation, 3D model design	Warranty	More Than 5 Years
After-sale Service	Onsite Installation, Free Spare Parts	Design Style	Traditional
Pattern	Solid, Striped	Type	Non-woven geotextile
Advantage	Good Hot Stability	Brand Name	DOER NONWOVEN
Sample	Freely	Application	Sediment Control
Product name	Short-Fiber Non-Woven PP Geotextile Fabric	Material	PP
Color	Black/white(as Request)	Certificate	ISO9001/ISO14001
Weight	100g/m2-1200g/m2	Tensile Strength	2.5KN-25kn/M

Packaging and delivery

Selling Units	Single item	Single package size
Single gross weight	1.000 kg	1X1X1 cm

Product Introduction

DOER NONWOVENS short-fiber PP non-woven geotextile is professional needle-punched geotechnical fabric specially customized for geobag filling and sediment control projects. The raw material is pure polypropylene staple fiber, processed via combing, cross-laying and high-speed needle punching integrated production line to form stable three-dimensional fiber structure.Different from woven geotextile, staple fiber needle punched geotextile owns uniform pore distribution, balanced horizontal drainage and vertical permeability, which can effectively separate soil, sand and water to prevent soil loss. It passes ISO9001 quality management and ISO14001 environmental management certification, color supports black and white or customized color matching.The product weight ranges from 100g/m² to 1200g/m², tensile strength 2.5KN/M to 25KN/M, width adjustable from 1m to 6m, standard roll length 50m or 100m. It can resist long-term ultraviolet irradiation, high temperature up to 230℃ and all kinds of acid, alkali, gasoline and diesel corrosion in soil. With excellent elongation performance, it can fit uneven, deformed foundation without cracking.

We provide complete engineering supporting services: cross-category scheme consolidation, 3D model drawing, on-site installation guidance and free spare parts. The official product warranty exceeds 5 years, free test samples are available for all customers before bulk order. It is widely matched with geobags, river slope protection, road subgrade, landfill and sediment interception projects.

Product Advantages

Outstanding UV Aging Resistance: Long-term outdoor buried or exposed use will not be pulverized, effectively extend engineering service life.
High Thermal Stability: Keep complete fiber structure and physical performance under 230℃ high temperature, no melting or deformation.
Dual Water Conduction Performance: Fast horizontal drainage + stable vertical filtration, avoid water accumulation and soil collapse on slope.
Excellent Anti-Creep Property: Not easy to stretch and deform under long-term soil pressure, maintain stable isolation & filtration effect.
Full Chemical Corrosion Resistance: Resist acid, alkali, soil organic matter, gasoline and diesel erosion, suitable for complex geological environment.
Super High Elongation Rate: Adapt to uneven, subsided and irregular foundation without crack breakage, fit slope deformation.
Complete Engineering Supporting Service: Provide 3D design, on-site installation guidance, long 5+ years warranty and free pre-order samples for project verification.

Main Application Scenarios

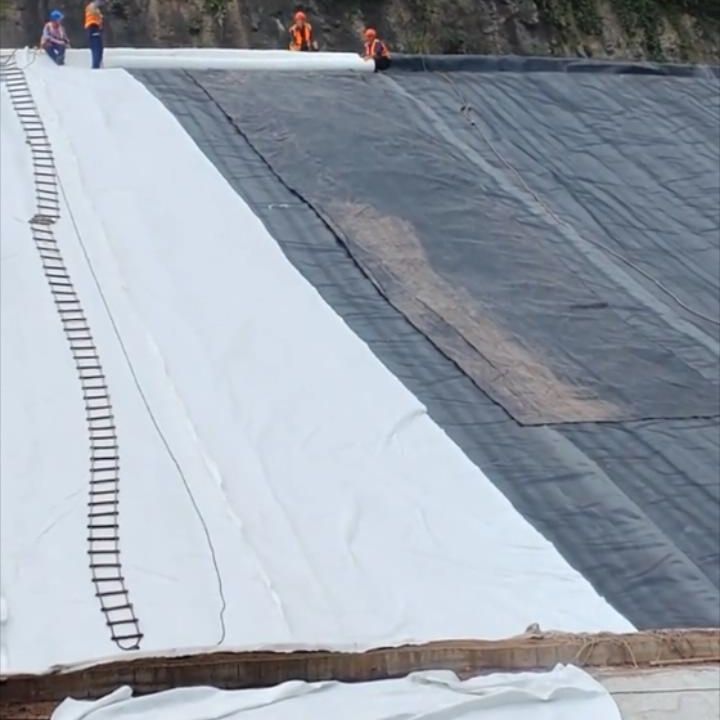

Geobag inner lining and filling fabric for river bank slope protection, mountain landslide control;
Sediment interception and silt control in water conservancy, lake and river regulation projects;

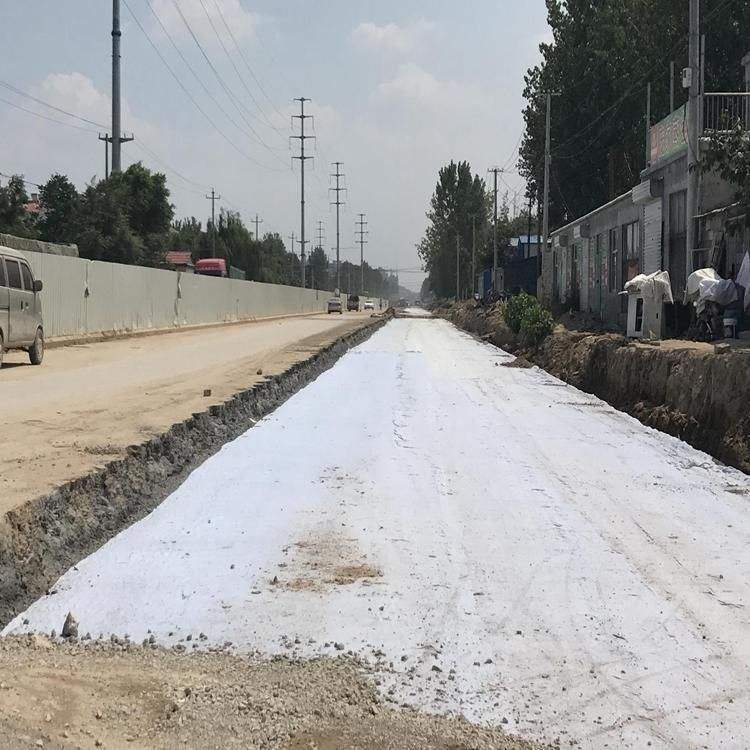

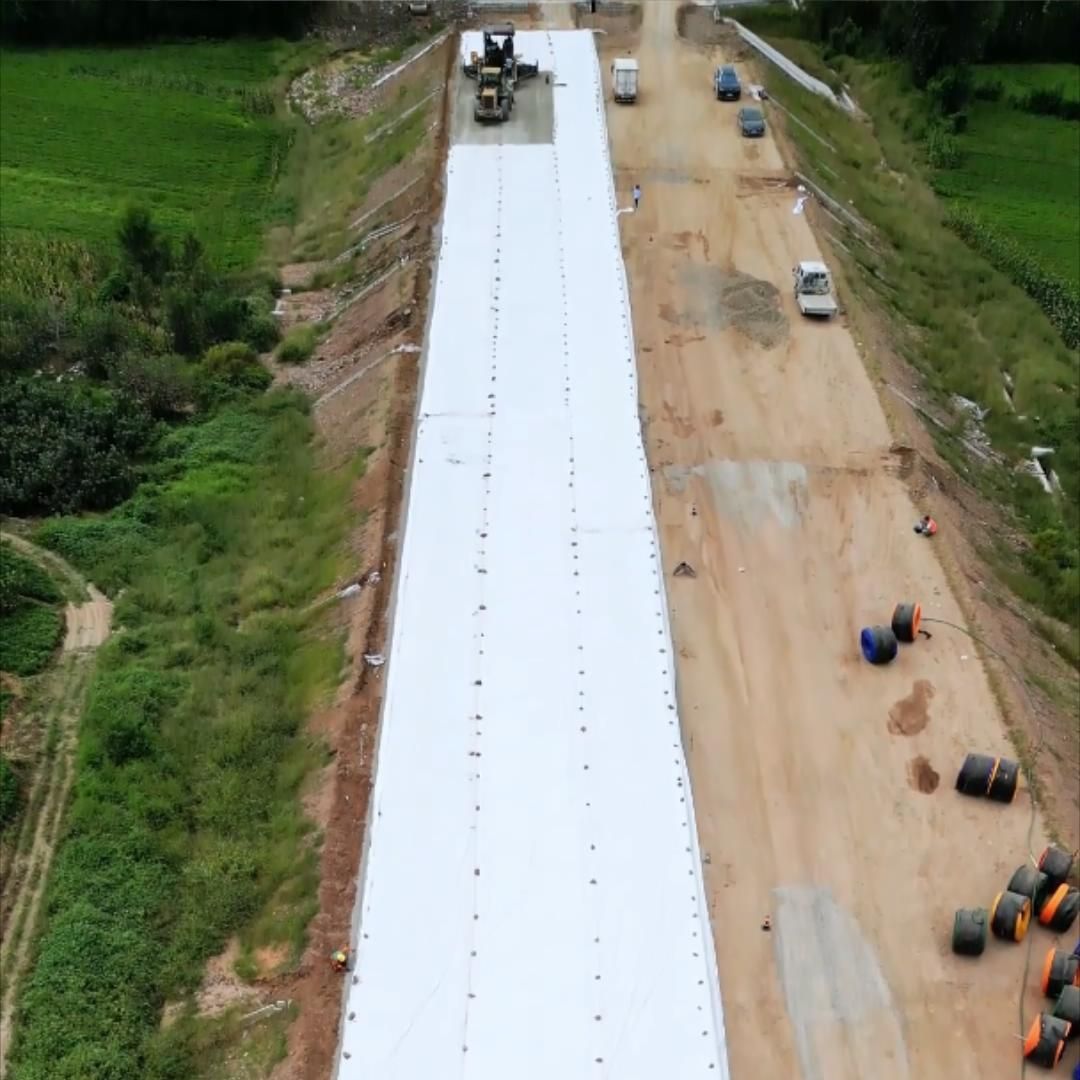

Road, highway and railway subgrade isolation, anti-seepage and reinforcement;

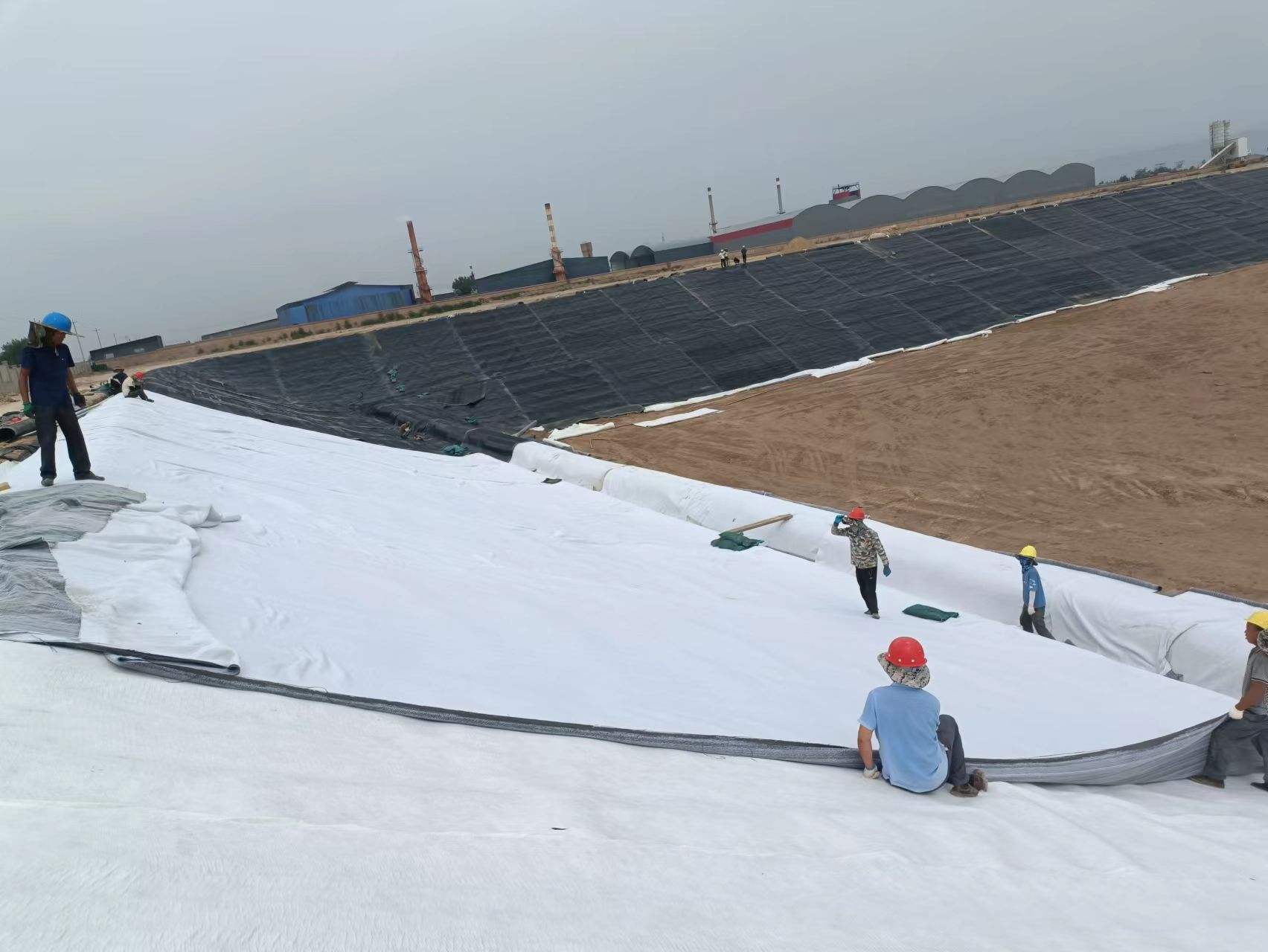

Landfill waste isolation, leachate filtration and drainage system;
Landscape greening, artificial lake, reservoir anti-seepage and soil stabilization;
Mine restoration, tailings pond sediment separation and anti-pollution barrier.

Packaging & Delivery Description

The geotextile is rolled into standard rolls of 50m or 100m, packed with waterproof plastic film outer layer to prevent sunlight and moisture during transportation. Single unit gross weight is 1kg, customized roll size is acceptable according to engineering construction demand. After confirming weight, width, length and color, we arrange mass production rapidly, all rolls pass tensile and permeability inspection before shipment. Free samples can be sent to customers for laboratory performance test before formal order.
